Canon EOS 77D

Description

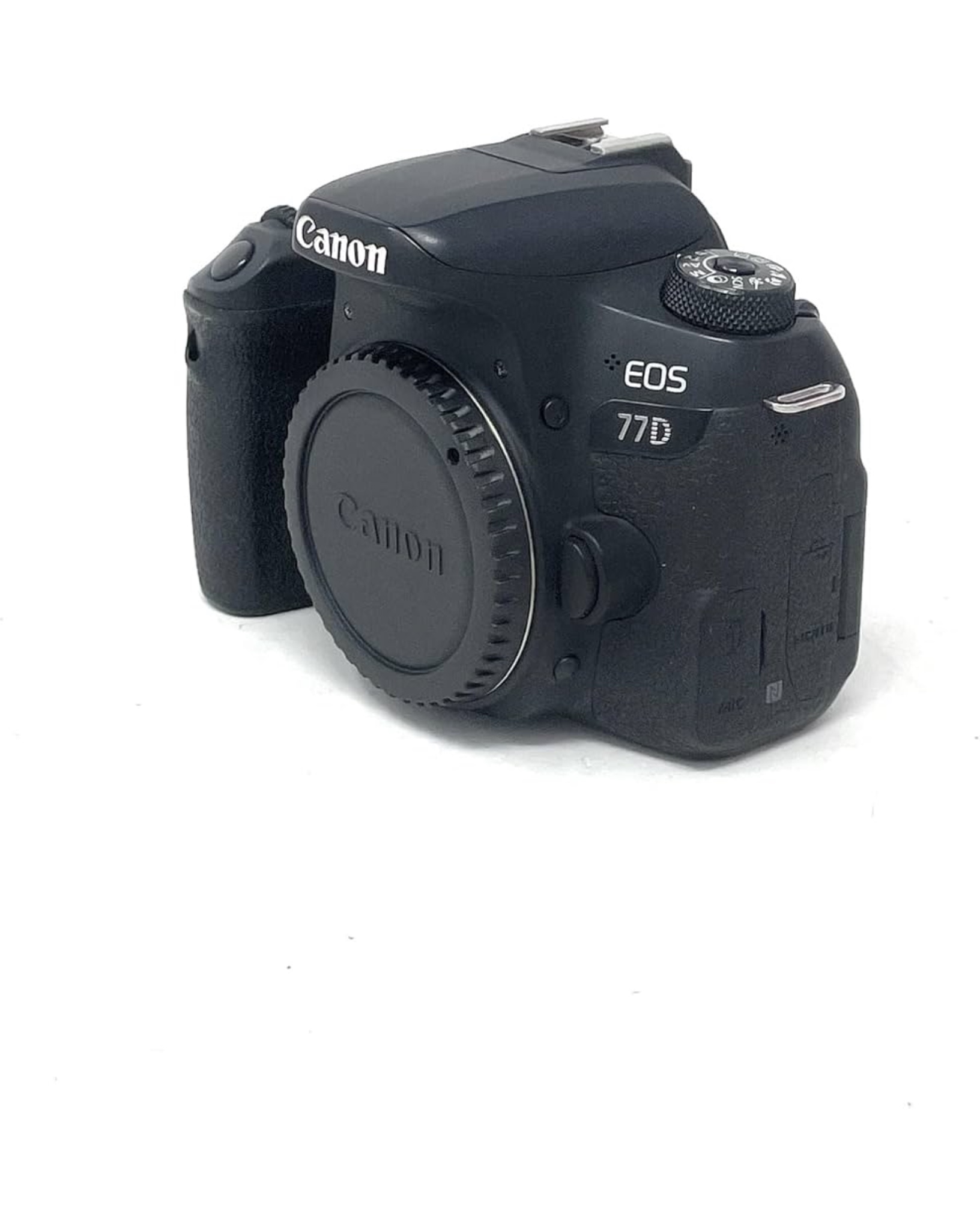

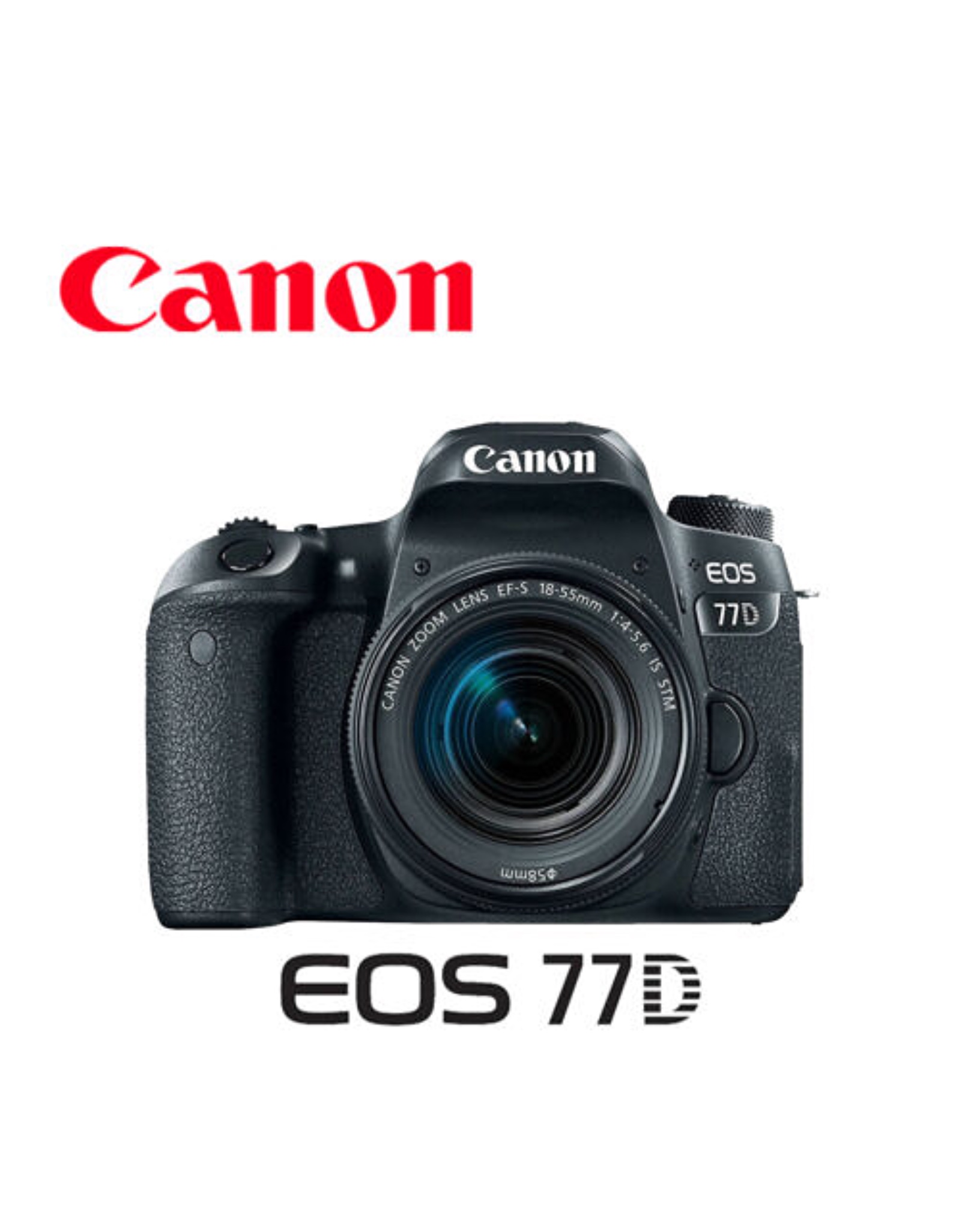

The Canon EOS 77D (also known as EOS 9000D in some markets), a mid-range APS-C DSLR released in 2017. It bridges enthusiast and semi-pro levels, sharing many advanced features with the higher-end EOS 80D while being lighter and more affordable. It’s designed for photographers who want strong stills performance, fast autofocus, and solid video in a compact, user-friendly body.

Key Highlights
• 24.2 MP APS-C CMOS sensor with Dual Pixel CMOS AF for excellent detail and fast, smooth focusing in Live View and video.
• 45-point all cross-type AF system (viewfinder) with improved low-light sensitivity.
• DIGIC 7 processor for fast operation, better noise control, and features like Anti-flicker shooting.
• Vari-angle 3.0-inch touchscreen LCD (fully articulating) plus a top-plate LCD for quick info.
• 6 fps continuous shooting with a decent buffer.
• Full HD 1080p video at up to 60 fps with Dual Pixel AF for smooth tracking.
• Built-in Wi-Fi, NFC, and Bluetooth for easy wireless transfer and remote control.
• Lightweight design (lighter than the 80D) with good ergonomics, including dual control dials and an AF-ON button.

Sensor and Image Processor
• Sensor: 24.2 MP effective (25.8 MP total) APS-C CMOS (22.3 × 14.9 mm, 1.6x crop factor).
• Processor: DIGIC 7.
• ISO range: 100–25,600 native (expandable to 51,200).
• Dynamic range: Solid for APS-C, with good color rendition and highlight recovery.
• File formats: JPEG, 14-bit RAW, RAW + JPEG.

Still Photography Performance
• Continuous shooting: Up to 6 fps (full resolution).
• Autofocus (viewfinder): 45-point all cross-type phase-detection AF system. Works down to -3 EV; supports f/8 combinations (up to 27 points in some cases).
• Autofocus (Live View): Dual Pixel CMOS AF — fast and accurate phase-detection across most of the frame.
• Metering: 7,560-pixel RGB+IR metering sensor with evaluative, partial, spot, and center-weighted modes.
• Shutter speed: 30 s to 1/4000 s; flash sync at 1/200 s.
• Viewfinder: Optical pentamirror with ~95% coverage.
• Other features: Anti-flicker detection, Auto Lighting Optimizer, Picture Styles, Creative Filters, in-camera RAW processing, HDR, and time-lapse movie mode.

Video Recording
• Max resolution: Full HD 1080p at 60/50/30/25/24 fps; 720p at higher frame rates.
• Format: MOV (H.264) with stereo audio.
• Video features: Dual Pixel CMOS AF for smooth subject tracking, manual exposure control, external mic input, Movie Electronic IS (5-axis digital stabilization in video), HDR Movie, and Time-Lapse Movie. No 4K.
• HDMI output for external recording/monitoring.

Design and Ergonomics
• Body type: Compact DSLR with polycarbonate construction (not fully weather-sealed like the 80D).
• Dimensions: Approx. 131 × 99.9 × 76.2 mm (5.16 × 3.93 × 3.00 in).
• Weight: Approx. 540 g (with battery and card) — noticeably lighter than the 80D.
• LCD: 3.0-inch vari-angle touchscreen (1.04 million dots, Clear View II).
• Top display: Small LCD panel for key shooting info.
• Controls: Dual dials, AF-ON button, Quick Control dial, and customizable buttons for enthusiast-level operation.
• Media: Single SD/SDHC/SDXC slot (UHS-I compatible).
• Flash: Built-in pop-up flash with wireless E-TTL control; hot shoe for external Speedlites.
• Connectivity: Wi-Fi, NFC, Bluetooth (for pairing with smartphones or the BR-E1 remote); mic input, USB 2.0, HDMI mini.

Power and Battery Life
• Battery: LP-E17 Li-ion (CIPA rating: ~600 shots with viewfinder; lower in Live View/video).
• Optional: BG-E18 battery grip not officially supported (unlike higher models).

Limitations (especially noticeable in 2026):
• No 4K video or advanced cinema tools (e.g., no headphone jack, limited to 1080p).
• Max shutter speed of 1/4000 s and flash sync at 1/200 s.
• Pentamirror viewfinder (smaller/brighter than pentaprism models like the 80D).
• Not weather-sealed; plastic-heavy build.
• Single card slot and moderate buffer depth.
• Battery life is average compared to pro bodies.

Firmware: Latest is Version 1.1.0 (October 2020), which improved NFC compatibility with Android 10 devices. No major updates since. It remains a capable choice for enthusiasts entering the Canon EF/EF-S ecosystem, especially with lenses like the EF-S 17-55mm f/2.8 IS USM or EF-S 18-135mm IS USM. Modern mirrorless options (e.g., Canon EOS R series) surpass it in autofocus speed, video, and low light, but the 77D offers great value for stills-focused shooters who prefer an optical viewfinder and DSLR ergonomics.
