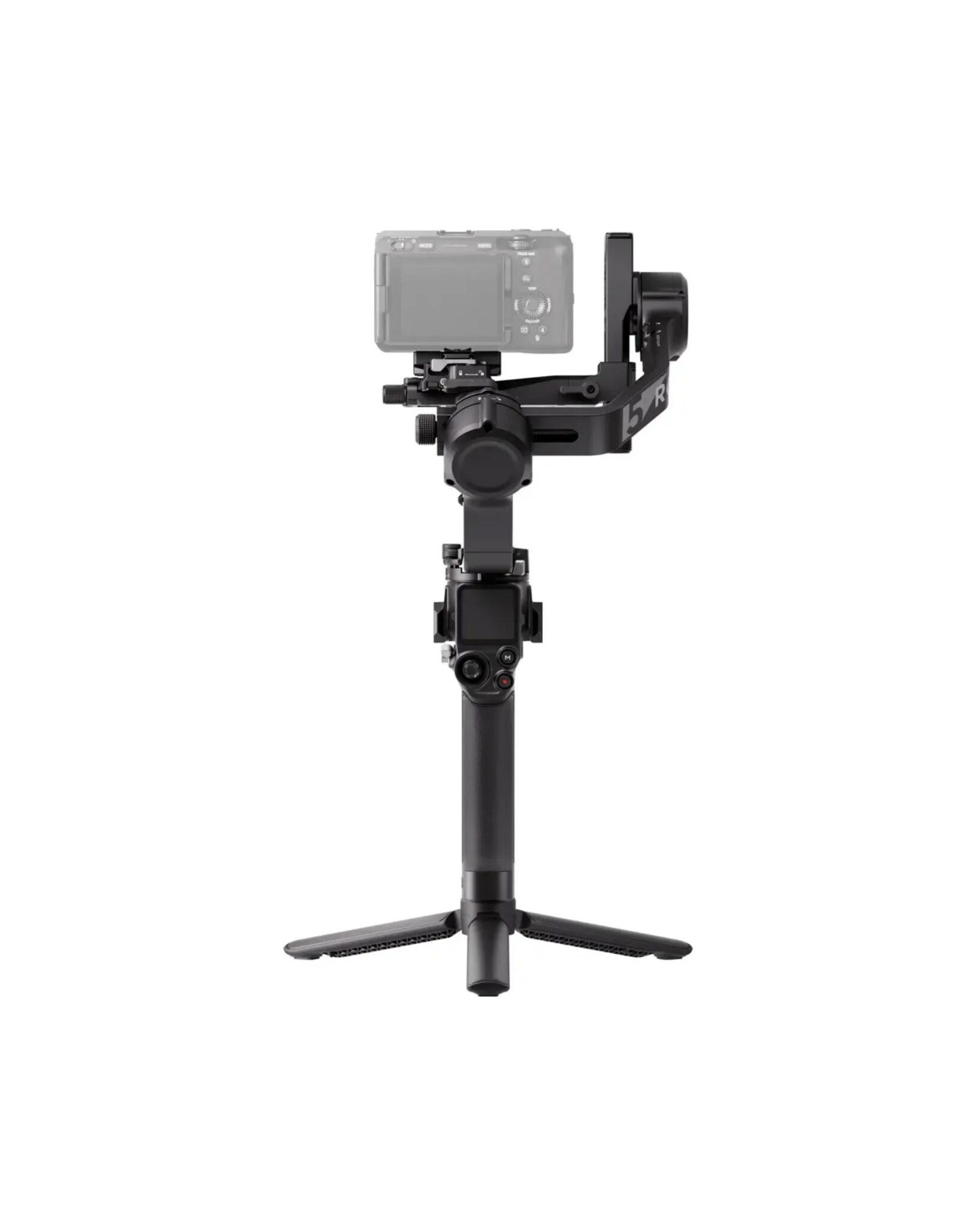

DJI RS 5

Description

The DJI RS 5 is the latest lightweight 3-axis handheld gimbal stabilizer from DJI’s Ronin series, officially launched globally in late January 2026. It is designed for solo filmmakers, vloggers, and content creators using mirrorless cameras, delivering professional stabilization in a compact, easy-to-balance package. It builds on the RS 4 series with a 5th-generation stabilization algorithm (50% higher peak motor torque), faster charging, longer runtime, and new smart features like a Z-axis indicator and optional enhanced tracking.

Key Features
• Compact & Lightweight Design — Weighs just 1.46 kg (including battery grip and quick-release plates), making it highly portable while supporting a tested payload of 3 kg (6.6 lbs). Ideal for mainstream mirrorless + lens combos (e.g., Sony FX3/A7 series with 24-70mm f/2.8, Canon R5 Mark II, Nikon Z6 III, Panasonic S5M2, Fujifilm X-T5).
• 5th-Gen RS Stabilization Algorithm — Provides smoother performance with improved torque, especially in fast movements and vertical/portrait shooting. Includes a new Z-Axis Indicator on the screen to help reduce vertical shake from footsteps by guiding your gait.
• Easy Balancing — Features fine-tuning knobs with Teflon-enhanced low-friction design for quicker, smoother adjustments. 2nd-gen automated axis locks unlock/lock automatically on power-up/down.
• Native Vertical Shooting — 3rd-gen design switches to vertical mode without extra accessories or rebalancing.
• Battery Upgrades — Standard BG33 grip offers up to 14 hours runtime (15% more than previous models). Full charge in just 1 hour using a 65W PD charger (60% faster). Optional BG70 high-capacity grip extends runtime to 30 hours.
• Smart Controls & Tracking — 1.8” OLED touchscreen with auto-lock. Optional RS Enhanced Intelligent Tracking Module (magnetic mount) enables touchscreen subject selection/tracking (people, pets, vehicles) up to ~10m, with ActiveTrack, gesture control, and framing options — works without relying solely on a phone app.
• Briefcase Handle Option — Electronic briefcase-style handle (available separately or in Combo) provides direct gimbal/camera control, joystick operation, and unique low/high-angle shots.
• Creative Modes — Panorama, time-lapse, motion-lapse, 360° rolls, and more. Supports Bluetooth + cable camera control (shutter/focus on compatible models). Works with Ronin app for advanced customization.
• Additional Perks — Quick-open tripod, NATO rails for secure accessories, multiple mounting points (1/4”-20, cold shoe, RSA ports), and improved vertical stability.
It excels for run-and-gun shooting, travel filmmaking, social media content, and solo operator workflows. Note: For heavier cinema rigs (up to 4.5–10 kg), consider the RS 4 Pro instead. LiDAR autofocus support is currently better on the RS 4 Pro.

Technical Specifications
Stabilization
• Axes: 3-axis (Pan/Yaw, Tilt, Roll)
• Tested Payload: 3.0 kg (6.6 lbs)
• Max Controlled Rotation Speed: 360°/s (all axes)
• Mechanical Range: Pan 360° continuous; Tilt -112° to +214°; Roll -95° to +240°
Battery (BG33 Grip)
• Capacity: 2150 mAh / 33.29 Wh (LiPo 4S)
• Runtime: Up to 14 hours
• Charging: ~1 hour (65W PD USB-C)
• Operating Voltage: 11.2–17.8 V

Build & Dimensions
• Weight: Gimbal ≈1.193 kg (with plates); Total with grip/plates ≈1.46 kg
• Folded: Approx. 247.4 × 115.7 × 258.7 mm (excluding camera/grip/tripod)
• Operating Temperature: -20°C to 45°C

Connectivity & Display
• Bluetooth, USB-C ports (camera control, accessory, multifunction)
• OLED Touchscreen (with auto-lock)
• App: DJI Ronin app (iOS/Android)

What’s in the Box (Standard Kit)
• DJI RS 5 Gimbal
• BG33 Battery Grip
• Upper & Lower Quick-Release Plates
• Quick-Open Tripod
• Multi-camera control cables
• Carrying case and small accessories (screws, wrench, etc.)

Combo Kit typically adds the RS Enhanced Intelligent Tracking Module and Electronic Briefcase Handle for more advanced tracking and control.

Camera Compatibility
The RS 5 supports a wide range of mirrorless cameras and lenses from Sony, Canon, Nikon, Panasonic, Fujifilm, and others, as long as the total setup stays under 3 kg. It performs best with balanced, compact full-frame rigs. Check DJI’s official compatibility list for your exact camera + lens combo, including shutter/focus control support.
Popular examples: Sony A7/FX3 series, Canon R5/R6/R8, Nikon Z6/Z7/Z8/Z9 (lighter setups), Panasonic GH/S5 series, Fujifilm X-T5/X-H2.

The DJI RS 5 is a refined evolution focused on usability, speed, and all-day shooting for solo creators. It offers noticeable improvements in balancing, charging, runtime, and smart features over the RS 4 while keeping the payload and lightweight form factor that many professionals love. If you need higher payload or LiDAR, look at the RS 4 Pro; for ultra-light setups, the RS 4 Mini remains an option.
